Vector

First taught in Algebra 2 · also in Pre-calculus

Definition

A vector, also called vector quantity, is a quantity that has both magnitude and direction. For example, suppose you are pulling a cart up a 25 degrees incline and it requires an effort of 75 pounds.

This situation is describing a vector because it has a magnitude and it has a direction. The magnitude is 75 pounds and the direction is 25 degrees from the horizontal.

Advertisement

What is a vector geometrically?

Geometrically, a vector is a directed line segment with an initial point and a terminal point such as the one shown below.

Vector

We can use boldface letters such as v, w, s to denote vectors. Notice the boldface letter v used above to denote the vector shown in blue.

Relationship between two vectors

There are four possible relationships between two vectors v and w.

1.

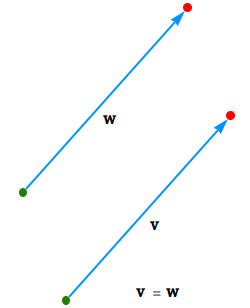

v = w because the vectors have the same magnitude and the same direction.

Equal vectors

2.

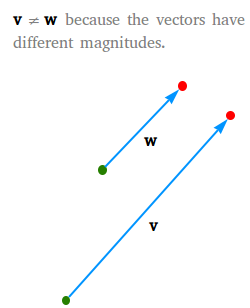

v ≠ w because the vectors have the same direction, but different magnitudes.

Vectors with different magnitudes.

3.

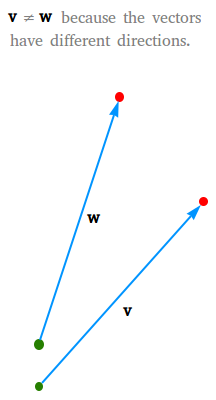

v ≠ w because the vectors have the same magnitudes, but different directions.

Vectors with different directions.

4.

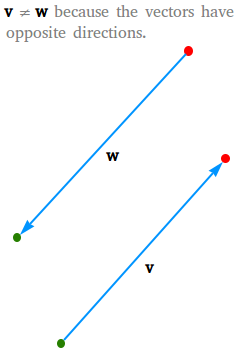

v ≠ w because the vectors have the same magnitudes, but opposite directions.

Vectors with opposite directions.

More real life examples of vectors

  • Driving a car due south at 65 miles per hour.
  • Picking a box from the floor and lifting it straight up or at an angle.
  • Kicking a football with a speed of 38 feet per second at an angle of 50 degrees.
